Application

Applicable for automatic sharpening of diamond grinding wheels (φ 100-230mm).

Characteristics

• Manual loading and unloading
• Pneumatic chuck clamping
• Automatic top and side cutting
• CNC feed for the grinding wheel, ensuring high sharpening accuracy
• Fully enclosed dust removal system, providing a friendly working environment

Introduction

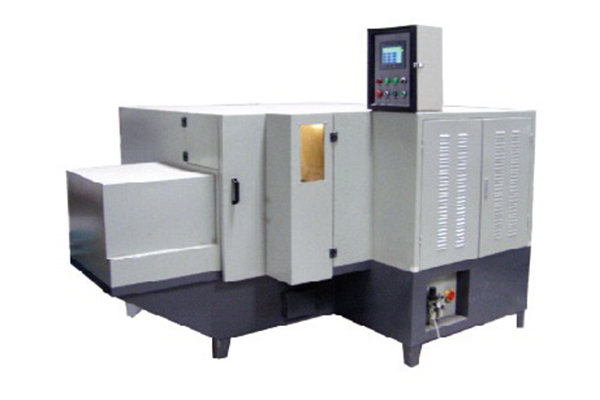

A diamond grinding wheel sharpening machine is a specialized tool designed to sharpen diamond grinding wheels, ensuring they remain effective and precise in various grinding applications. These machines are crucial for maintaining the performance and longevity of diamond wheels, which are used in industries such as metalworking, woodworking, and stone fabrication.

Key Functions

Sharpening

• Diamond Segment Maintenance: Restores the sharpness of the diamond segments on the grinding wheel, ensuring efficient material removal and grinding.
• Angle Adjustment: Provides precise control over the sharpening angle to maintain the optimal cutting profile of the diamond segments.

Grinding

• Surface Grinding: Ensures the surface of the grinding wheel is even and smooth, enhancing its performance and reducing vibrations during operation.
• Edge Grinding: Sharpens the edges of the diamond segments to improve cutting efficiency and reduce chipping.

Dressing

• Wheel Dressing: Removes dull and worn-out segments from the grinding wheel, exposing fresh diamond material for sharpening.
• Profile Dressing: Shapes the grinding wheel to the desired profile, ensuring consistent and accurate grinding results.

Adjustability

• Speed Control: Adjustable speed settings to accommodate different materials and wheel sizes.
• Depth Control: Precise control over the depth of sharpening to ensure optimal material removal without over-grinding.

Stability and Security

• Secure Wheel Holding: Equipped with a robust holder to keep the grinding wheel firmly in place during the sharpening process.
• Adjustable Guides: Guides that can be adjusted to align the wheel accurately with the sharpening mechanism.

Durability

• Quality Components: Constructed with durable materials to withstand frequent use and ensure long-lasting performance.
• Maintenance Alerts: Some models include features to alert operators when maintenance or wheel replacement is needed.

Benefits

Enhanced Grinding Performance

• Improved Efficiency: Sharp diamond segments cut and grind more efficiently, reducing operation time and improving productivity.
• Consistent Results: Ensures uniform sharpening, leading to consistent and reliable grinding results.

Extended Wheel Life

• Reduced Wear: Regular sharpening and dressing reduce wear and tear on the diamond segments, extending the lifespan of the grinding wheel.
• Cost Savings: Longer-lasting grinding wheels mean reduced replacement costs and lower operational expenses.

High-Quality Grinding

• Smooth Finishes: Sharp and well-maintained grinding wheels produce smooth and high-quality finishes on various materials.
• Precision Grinding: Accurate sharpening ensures precise material removal and grinding, enhancing the overall quality of the work.

Versatility

• Multiple Wheel Sizes: Capable of handling various sizes and types of diamond grinding wheels used in different applications.
• Material Compatibility: Suitable for wheels used in grinding different materials such as metals, ceramics, and composites.

Conclusion

A diamond grinding wheel sharpening machine is an essential tool for maintaining the performance and longevity of diamond grinding wheels. By ensuring precise and consistent sharpening and dressing, this machine enhances grinding efficiency, reduces operational costs, and improves the quality of work in various industrial applications.
