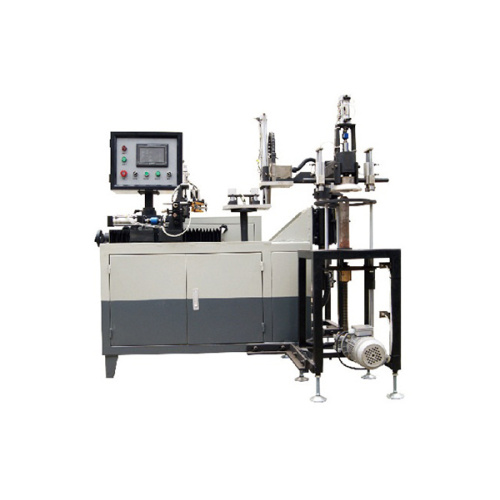

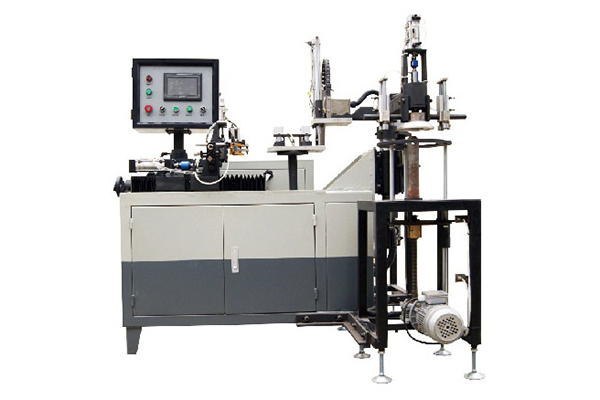

Welding Accuracy Test Machine

Application:

Used for automatic detection of welding accuracy of ∅ 250-600mm diamond circular saw blade segments.

Characteristics: The machine parameters are fully CNC controlled, with reliable detection results and high detection accuracy; Easy to operate, reduces labor intensity, has high work efficiency, and saves labor.

A welding accuracy test machine is a specialized device used to evaluate and verify the precision and quality of welded joints.

This machine assesses various parameters of welded components to ensure they meet specified standards and requirements. Here are its key functions and benefits:

Key Functions:

• Joint Measurement: Measures dimensions such as weld size, depth, width, and penetration to verify compliance with design specifications.
• Visual Inspection: Examines the surface quality of welded joints for defects such as cracks, porosity, undercutting, and incomplete fusion.
• Macroscopic Examination: Inspects the internal structure of welds to assess grain structure, inclusion content, and overall integrity.
• Mechanical Testing: Conducts tests such as tensile, bend, and impact tests to evaluate the mechanical properties and strength of welded joints.
• Ultrasonic Testing: Utilizes ultrasonic waves to detect internal defects, discontinuities, and thickness variations within welded materials.
• Radiographic Testing: Uses X-rays or gamma rays to produce images of welds, revealing internal defects and ensuring weld integrity.
• Non-Destructive Testing (NDT): Employs various NDT methods like magnetic particle inspection (MPI) and dye penetrant testing (PT) to identify surface and subsurface defects without damaging the weld.

Benefits:

• Quality Assurance: Ensures welded joints meet required standards and specifications, reducing the risk of structural failures and defects.
• Process Optimization: Identifies areas for improvement in welding procedures, leading to increased efficiency and productivity.
• Cost Reduction: Minimizes the need for rework and repairs by detecting defects early in the welding process, saving time and resources.
• Safety Enhancement: Helps prevent accidents and injuries by ensuring welds possess the necessary strength and integrity for their intended application.
• Regulatory Compliance: Ensures compliance with industry standards, codes, and regulations governing welding practices.
• Customer Satisfaction: Provides confidence to customers and stakeholders regarding the quality and reliability of welded products.

Conclusion:

A welding accuracy test machine plays a crucial role in ensuring the quality, integrity, and safety of welded components. By thoroughly evaluating welded joints through various testing methods, it helps uphold high standards of welding excellence and promotes confidence in the reliability of welded structures across diverse industries.
