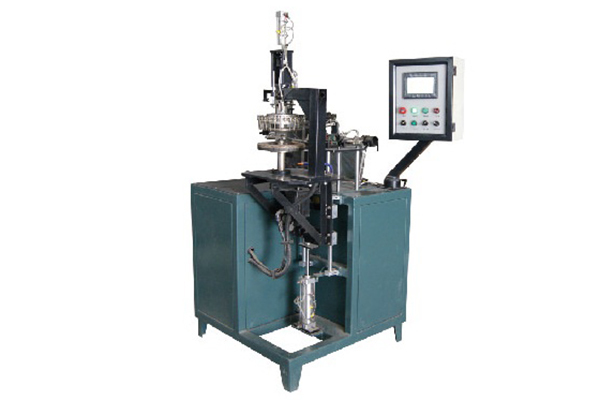

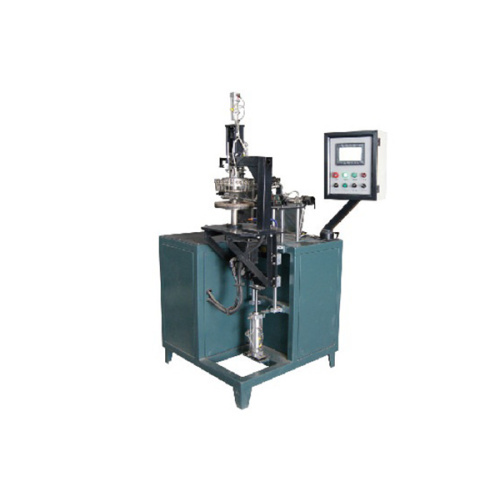

Diamond Ceramic Grinding Wheel Welding Machine

Application

Suitable for automatic welding of diamond ceramic grinding wheels (φ 150-300mm).

Characteristics

• The segment is automatically placed, and the grinding wheel is automatically welded.
• During welding, the grinding wheel rotates and heats up, with infrared temperature control and high welding strength.

Overview

A diamond ceramic grinding wheel welding machine is specialized equipment designed for manufacturing diamond ceramic grinding wheels. These grinding wheels are known for their high hardness, wear resistance, and efficient cutting capabilities, making them essential in various material grinding and cutting applications.

Welding Principle

The machine typically uses high-temperature welding techniques such as laser welding, plasma welding, or high-frequency induction welding. These methods melt the bonding agent between diamond particles and the ceramic substrate, ensuring a strong bond.

Equipment Structure

• Welding Main Unit: Generates the high temperatures needed for welding.
• Cooling System: Manages temperature to prevent overheating.
• Control System: Ensures precise welding parameter adjustments.
• Safety Protection Devices: Protects operators during operation.

Welding Process

The process involves several steps: preparation (cleaning and pre-treating materials), positioning and fixing diamond particles, heating and welding, cooling, and post-treatment (removing excess welding material). Accurate control of temperature, time, and pressure is crucial for high-quality welding.

Applications

Diamond ceramic grinding wheel welding machines are used extensively to produce high-precision grinding wheels suitable for processing various hard materials, such as stone, ceramics, glass, and hard alloys.

Advantages

• Efficiency: They can quickly and efficiently produce high-quality diamond ceramic grinding wheels.
• Precision: They offer precise control over welding parameters, ensuring the welding quality and performance of the grinding wheels.
• Automation: Many machines feature a high degree of automation, reducing the need for manual operation and increasing production efficiency.

Conclusion

Overall, diamond ceramic grinding wheel welding machines play a crucial role in modern industrial manufacturing, especially in sectors requiring high hardness and precision processing.
